Bearings are manufactured from a wide variety of materials, such as chrome steel, stainless steel, ceramics, engineering plastics and so on. There are significant differences between bearings made of different materials in terms of mechanical properties, applicable working conditions and service life. At present, chrome steel bearings occupy a dominant position in the industrial field and daily life by virtue of their excellent comprehensive performance; while in some special working conditions, stainless steel bearings and ceramic bearings show unique advantages, which are quite favored by consumers.
This article will systematically compare and analyze the technical characteristics of stainless steel bearings and ceramic bearings from the dimensions of material properties, tribological properties, wear life, corrosion resistance, economy, typical application scenarios and selection guidance, aiming to provide professional and practical reference for engineering designers, procurement decision makers, and bearing technology enthusiasts.

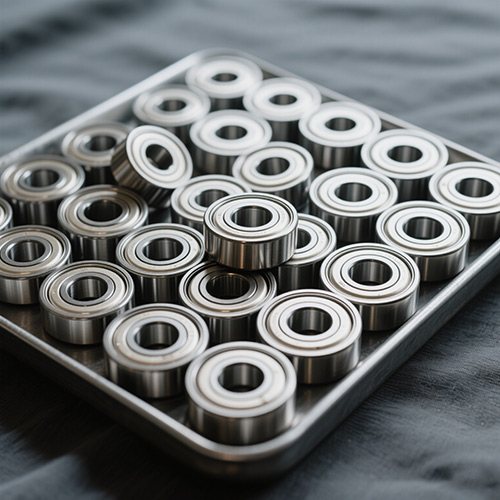

Stainless steel bearings are made of special stainless steel alloy, which significantly improves the service performance of conventional bearing steel (GCr15/AISI 52100, etc.) in corrosive environments through material upgrading. It has significant advantages in high temperature and high humidity, acid and alkali media and salt spray and other special environments. Structurally, stainless steel bearings are identical to conventional steel bearings, including inner rings, outer rings, rolling elements (balls or rollers), cages, seals (optional), and so on. However, these components are generally manufactured from stainless steel materials such as AISI 440C (martensitic stainless steel with good corrosion resistance) or AISI 304/316 (austenitic stainless steel for applications with higher corrosion resistance requirements).
The core advantage of stainless steel bearings lies in their innate ability to resist rust, even when exposed to moisture or water vapor for long periods of time, the surface will not produce corrosion. This characteristic comes from the stable molecular structure of the material, without additional coating can resist oxidation reaction, from the fundamental solution to the metal parts due to rust caused by the performance degradation problem.
Different from ordinary metal corrosion defects in acid and alkali, stainless steel bearings through a special alloy formula to form a self-protective layer, can effectively resist chemical media erosion. Whether acidic vapors or salt contact, its internal structure has always remained stable, to avoid corrosion caused by the decline in mechanical strength.
The molecular bond design of the special alloy gives stainless steel bearings high temperature resistance, and is not easy to soften or deform in a continuous heat environment. Even in the face of severe temperature fluctuations, can still maintain stable mechanical properties, breaking through the traditional limitations of thermal expansion of metal materials.
The dense, non-porous surface structure eliminates the risk of bacterial growth, and the material itself is non-toxic and does not release harmful substances. The material itself is non-toxic and does not release hazardous substances. Combined with the characteristics of repeated high temperature sterilization, it meets the extreme cleanliness requirements for mechanical parts in a sterile environment and avoids contamination of sensitive media.
The combination of high hardness material and anti-aging properties significantly reduces the rate of daily wear and tear. The unique self-lubricating performance reduces the dependence on manual maintenance, and extends the life of the bearings several times longer than conventional bearings under the same working conditions, and maintains the running accuracy even after long-term use.
Stainless steel bearings have environmentally friendly nature of the material, its full life cycle are in line with the requirements of sustainable development of modern industry. Raw material smelting process using clean production technology, to avoid the traditional electroplating process generated by heavy metal wastewater problems. After scrapping, it can be completely recycled and remelted for reuse, and the material loss rate is less than 5%.
Stainless steel bearings are widely used in various types of equipment and industries that require high environmental adaptability due to their corrosion resistance, moisture resistance, high cleanliness, high temperature resistance and other characteristics.
Such as food conveyor lines, packaging machinery, beverage filling machines, dough mixers, slicers and so on. Stainless steel bearings with food-grade grease to avoid contamination of ingredients.
Such as medical imaging equipment (such as MRI, CT machine), pharmaceutical filling lines, centrifuges, purification systems, surgical robots and so on. Stainless steel bearings with non-magnetic materials and clean lubricants are adapted to aseptic/magnetic sensitive environments.
Such as ship propulsion, deep sea exploration equipment, offshore wind power devices, marine motors, dock lifting machinery and so on. Stainless steel bearings have salt spray resistance, moisture resistance, corrosion resistance, rust resistance and other characteristics, in the face of sea breeze, rain, moisture erosion, stainless steel bearings can still maintain stable performance.
Such as chemical pumps, mixing and stirring equipment, conveying devices, corrosive gas/liquid conveying systems and so on. Compared with conventional bearings, stainless steel bearings are resistant to strong acids, strong alkalis and organic solvents, which can significantly extend the service life.
Such as industrial dishwashers, automated cleaning robots, spray cleaning equipment, water treatment systems and so on. Stainless steel bearings are resistant to high-temperature water, detergent, rust, dust and other characteristics, very suitable for frequent contact with high-pressure water or detergent equipment.

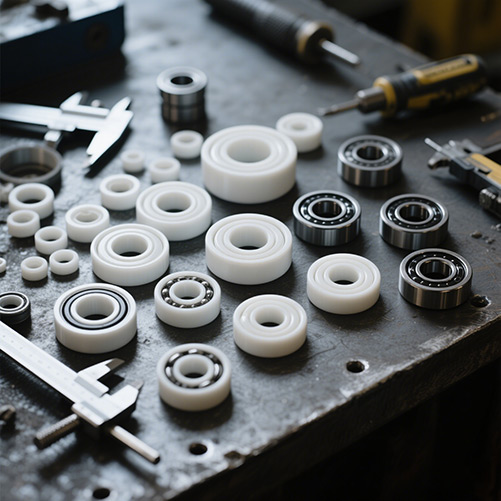

Ceramic bearings are made of advanced ceramic composite materials, which effectively break through the performance limitations of traditional bearing steel (e.g. GCr15/AISI 52100) under extreme working conditions by virtue of material innovation. They show significant advantages in harsh application scenarios such as high speed, high temperature, strong corrosion and electrical insulation, and are widely used in aerospace, chemical pumps and valves, precision instruments and other technically demanding fields.
From the structural design point of view, ceramic bearings are basically a continuation of the standard structure of traditional bearings, including the inner ring, outer ring, rolling body (balls or rollers), cage and (optional) sealing components. Ceramic bearings generally use high-performance ceramic materials such as silicon nitride (Si₃N₄) or zirconium oxide (ZrO₂), giving the bearings even better overall performance.
Ceramic materials are born with high temperature stability, the molecular structure in the extreme heat still maintains integrity, to overcome the defects of metal materials soften at high temperatures. Such as silicon nitride and other ceramic materials can withstand high temperatures of more than 800 ℃, and the coefficient of thermal expansion is small, good dimensional stability.
Ceramics itself on most acids, alkalis and chemical solvents have excellent resistance, whether it is a strong acid reactor or seawater desalination system, the surface is always smooth and undamaged, from the root of the corrosive medium to eliminate the performance decline caused by infiltration, can be used for a long time in harsh chemical environments or humid environments without rusting.
The density of ceramic is about 3.1-3.3 g/cm³, 60-65% lighter than steel (about 7.8 g/cm³), significantly reducing the inertial resistance during high-speed rotation. At the same time, the super-hard surface of ceramic bearings with microscopic smoothness, reducing the coefficient of friction, can obtain faster acceleration response and higher speed limit.
Ceramic materials have excellent electromagnetic insulation, making ceramic bearings more reliable in electrochemical corrosion or spark wear (galvanic corrosion) environment, eliminating electromagnetic interference on the signal of precision instruments.
Ceramic materials (such as silicon nitride, zirconium oxide) hardness is higher than the bearing with high carbon chromium bearing steel, can effectively resist the friction surface of the microscopic wear.
Ceramic material friction coefficient is low, can be realized under light load and high-speed operation conditions in some of the working conditions of oil-free lubrication. In addition, ceramic bearings are not easy to produce grease volatilization or particle shedding, hygiene and cleanliness.
Ceramic bearings are widely used in many fields with special requirements for high performance due to their excellent performance.
Such as machine tool spindles, dental drills, centrifuges, high-speed motors, power tools and so on. Stainless steel bearings have low density, small centrifugal force, low coefficient of friction and other characteristics, can reduce friction and energy loss at high speeds, to extend the service life of mechanical equipment.
Such as aerospace aviation engines, satellite gyroscopes, attitude control systems and other key parts, gas turbines, high-temperature furnaces, nuclear reactor cooling system and so on. All ceramic bearings (such as silicon nitride) and other knock in the high temperature environment, the coefficient of thermal expansion is small, and is not easy to oxidize, while the steel bearing is easy to soften the failure.
Such as chemical pumps, marine equipment, sewage treatment systems, mixing equipment, acid, alkali and corrosive gas environment. Ceramic bearings are resistant to acid, alkali and salt solutions, and can operate without lubrication, without frequent maintenance.
Such as electric vehicle motors, wind turbines, high-voltage equipment. Ceramic bearings are electrically insulating, blocking the current through the bearings, preventing damage from galvanic corrosion and prolonging the life of the motor.
Such as MRI equipment, surgical tools, pharmaceutical machinery, food processing machinery and so on. Ceramic bearings are non-magnetic, biocompatible, hygienic (corrosion-resistant and easy to clean), high temperature and high pressure sterilization environment adaptability.
Such as optical instruments, semiconductor equipment, medical imaging equipment and so on. Ceramic bearings with high geometric accuracy, strong dimensional stability, and part of the ceramic material is not permeable to magnetism.
Such as skateboards, bicycle hubs, fishing wheels and so on. In the field of sports, ceramic bearings have a lighter weight, faster speed and longer service life.
Common materials include 304, 440C, 316 and so on. Among them, 304 stainless steel has excellent corrosion resistance and is suitable for food and medical equipments; 440C has high hardness and is suitable for high load scenarios; 316 stainless steel has strong resistance to chlorine ion corrosion and is suitable for marine environment.
Common materials include silicon nitride (Si₃N₄), zirconium oxide (ZrO₂), silicon carbide (SiC) and so on. Generally speaking, ceramic bearings are mostly made of ceramic materials for rolling bodies and rings, while the keepers may be engineering plastics or special metals.

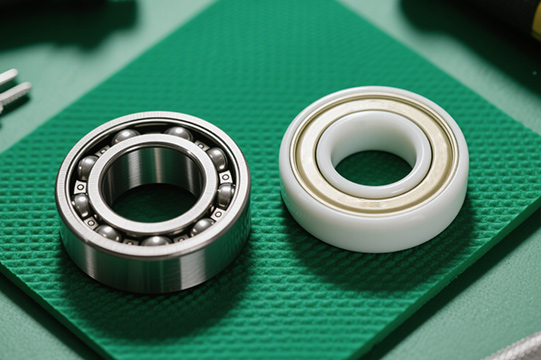

| Item | Stainless Steel Bearings | Ceramic Bearings |
Density | Approx. 7.9 g/cm³ | Approx. 3.2-6.0 g/cm³ |
Hardness | HRC 58-63 | HRC 70-80 |
Friction coefficient | Medium (requires lubrication) | Low (excellent self-lubrication, no oil needed) |
Rotation speed | Approx. 30,000 rpm (lubrication dependent) | Up to 75,000 rpm (without lubrication) |
Corrosion resistance | Resistant to water, weak acids and bases, but vulnerable to strong acids and bases | Resistant to strong acids, bases, seawater, salt spray, chemical media, etc. |
Wear resistance | Average | Excellent |
Temperature range | -50℃~300℃ (recommended ≤150℃) | -150℃~1000℃ |
Impact resistance | High toughness, strong impact resistance | Higher brittleness, prone to fracture from improper installation or extreme loads |
Electrical insulation | No electrical insulation capability | Good insulation properties |
Operating noise | Higher (greatly affected by material and lubrication) | Low noise and vibration |
Lubrication requirements | Must use oil or grease lubrication | Can run dry or with special lubrication |
Service life | Medium, requires regular maintenance | Long life in extreme environments |
Stainless steel bearings are cheaper and have a mature production process, so the initial cost is lower and suitable for large-scale applications. However, stainless steel bearings require regular lubrication and anti-corrosion treatment, which significantly increases maintenance costs in harsh environments.
Ceramic bearings are more expensive and difficult to process (high temperature sintering and precision grinding), the initial cost of stainless steel bearings is 3-10 times. However, for extreme environments, ceramic bearings have a long life and low maintenance requirements (no lubrication required), and long-term use can reduce the frequency of replacement and downtime losses, and the overall cost may be lower.
Stainless steel bearings are extremely widely used in general industrial equipment due to their excellent corrosion resistance, mechanical strength and cost advantages. It is suitable for mildly wet, dusty, low to medium-speed running occasions, such as food processing equipment, automated assembly lines, power tools, small motors and all kinds of general-purpose machinery.
Ceramic bearings show obvious advantages in high-performance, high-demand occasions. Due to its material characteristics, ceramic bearings have a lower coefficient of friction, higher hardness and stronger corrosion resistance, suitable for high-speed, high temperature, no lubrication or extreme corrosive environment, such as aerospace, chemical pumps and valves, corrosive conveying systems, high-speed motors, variable frequency drive systems, industrial robots, semiconductors, optical instruments, medical centrifuges, MRI and so on.
