0.18~22 KW
43-4200 NM
9.96~244.74
Cast iron
Helical-worm gears
Oil-bath and Splash Lubrication
China
OEM; ODM

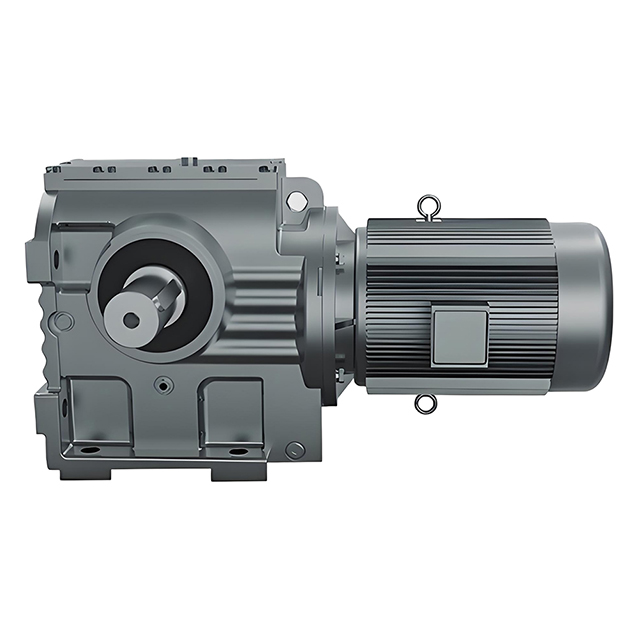

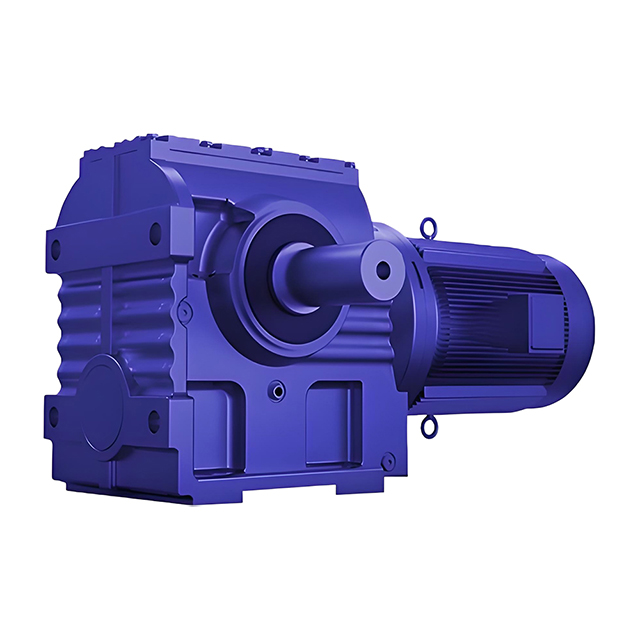

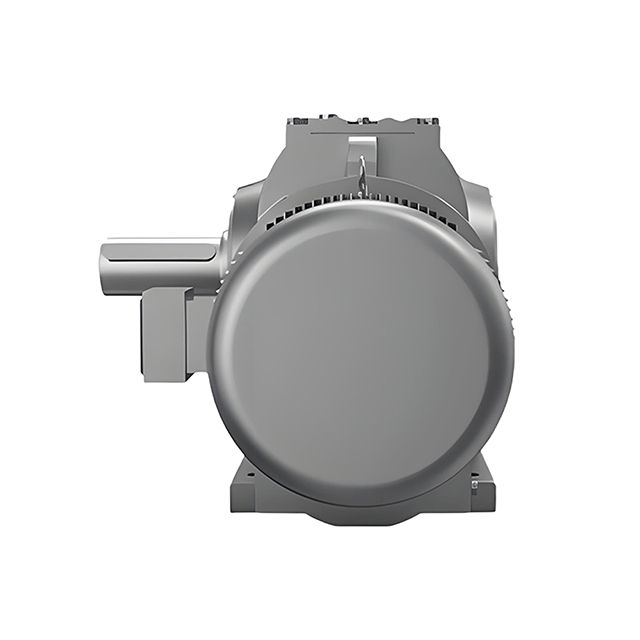

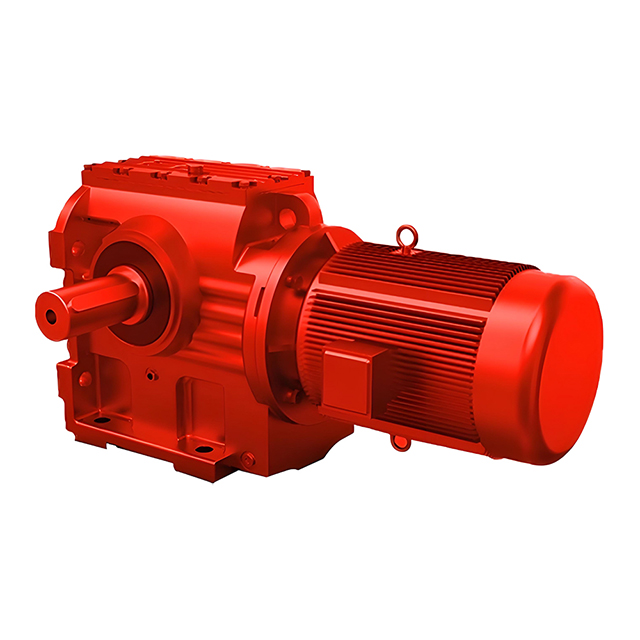

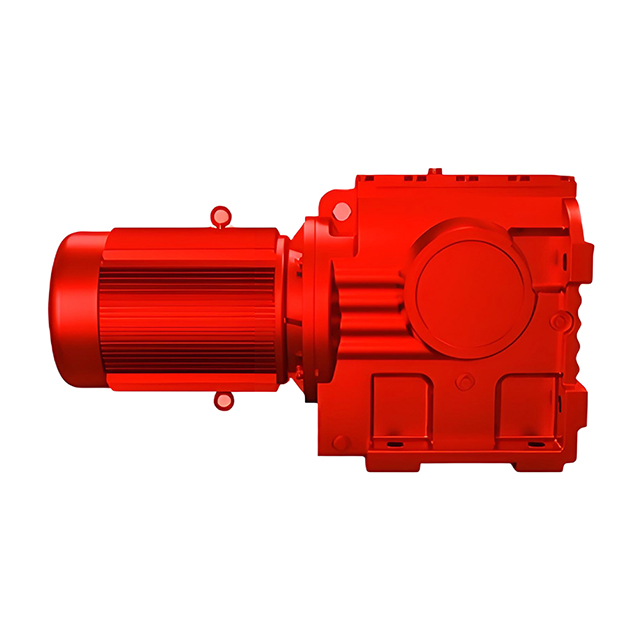

| Basic Information | |
| Product Name | S series helical worm gear reducer |
| Model | S37; S47; S57; S67; S77; S87; S97 |
| Type | S Series; SA Series; SF Series; SAF Series |

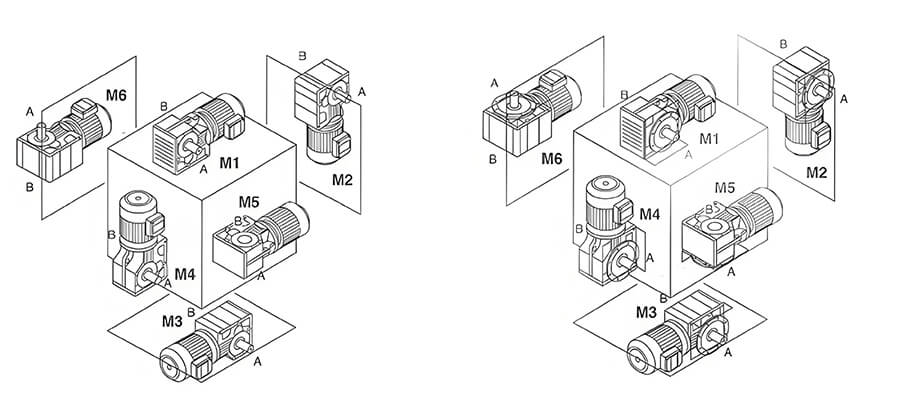

| Installation Method | Foot-mounted; Flange-mounted; Shaft-mounted; Torque arm mounted |
| Input Method | Motor input; Shaft input; AM (IEC) flange input |
| Output Method | Solid shaft output; hollow shaft output |
| Parameters Information | |
| Rated Power | 0.18~22 KW |
| Torque | 43-4200 NM |
| Ratio | 9.96~244.74 |
| Efficiency: | Up to 96% |
| Other Information | |
| Housing Material | Cast iron |
| Gears | Helical-worm gears |
| Lubrication | Oil-bath and Splash Lubrication |
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 |
| Structure | S SA SF SAF SAT SAZ | ||||||
| Input power rate (KW) | 0.18- 0.75 | 0.18- 1.5 | 0.18- 3 | 0.25- 5.5 | 0.55- 7.5 | 0.75- 15 | 1.5- 22 |
| Ratio | 10.27- 165.71 | 11.46- 244.74 | 10.78- 196.21 | 11.55- 227.20 | 9.96- 241.09 | 11.83- 223.26 | 12.75- 230.48 |
| Max torque (N.m) | 90 | 170 | 300 | 520 | 1270 | 2280 | 4000 |
| Weight (kg) | 7 | 10 | 14 | 26 | 50 | 100 | 170 |
1. S series helical-worm gear reducer has helical gear and worm gear combined with integrated transmission, which improves its torque and transmission efficiency and reduces energy loss.
2. Through the combination of helical gear and worm gear, a larger speed ratio range can be achieved, which is suitable for low-speed and high-torque working conditions.
3. The concave and convex surface of the machine body has the function of heat dissipation, strong vibration absorption, and low noise.
4. Adopting the same-axis structure design, compact structure, saving installation space.
5. Gears are made of high-strength alloy steel with carburising and quenching treatment, and the worm gear is made of wear-resistant material, which has high wear resistance, long service life and low maintenance cost.
6. S series helical-worm gear reducer can be connected to various types of reducers and configured with various types of motor drive, and can be installed in 90 degree transmission operating position.
7. Flexible and diversified installation methods, providing base mounting, flange mounting, shaft mounting and other installation methods, which can be adapted to the needs of different equipment.
LNB company is a professional supplier of Chinese gear reducers. We always keep high-quality products, expert technical support and perfect service as the center, and aim at providing customers with efficient and stable transmission solutions and winning customer's trust from all over the world. We are able to provide:
With the application of advanced manufacturing technology and high-quality materials, LNB is able to meet all the different demands of customers. Our gear reducers are made of high-strength materials, with high gear precision, smooth running, high transmission efficiency and durability, so that the equipment can provide stable operation under different working conditions, reduce the failure rate and maintenance cost of equipment and devices.
Our products cover several series and models, including K series, R series, S series, F series, etc., to be applied in numerous industrial areas, including metallurgy, mining, chemical industry, logistics and transport, food processing and other industries, and we offer OEM and ODM service to provide customers with customized reducer solutions according to customer needs.
LNB not only provides the best quality products, but also provides better services to assist customers in achieving a satisfactory experience. We can provide customers with selection guidance, installation and commissioning, operating training and other services, and provide quick response after-sales services to ensure your equipment is always in good condition.
LNB has been providing optimal reducers and services at a comparable price. We have a long-term cooperative partnership with manufacturers and are able to provide high-quality reducers at a reasonable price to help customers save on procurement costs and improve the return on investment of equipment.
We have a complete inventory management system to ensure that standard models of reducers are stocked and shipped easily, saving customers' waiting time as well as improving production efficiency.
| Basic Information | |
| Product Name | S series helical worm gear reducer |
| Model | S37; S47; S57; S67; S77; S87; S97 |
| Type | S Series; SA Series; SF Series; SAF Series |
| Installation Method | Foot-mounted; Flange-mounted; Shaft-mounted; Torque arm mounted |
| Input Method | Motor input; Shaft input; AM (IEC) flange input |
| Output Method | Solid shaft output; hollow shaft output |
| Parameters Information | |
| Rated Power | 0.18~22 KW |
| Torque | 43-4200 NM |
| Ratio | 9.96~244.74 |
| Efficiency: | Up to 96% |
| Other Information | |
| Housing Material | Cast iron |
| Gears | Helical-worm gears |
| Lubrication | Oil-bath and Splash Lubrication |
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 |
| Structure | S SA SF SAF SAT SAZ | ||||||
| Input power rate (KW) | 0.18- 0.75 | 0.18- 1.5 | 0.18- 3 | 0.25- 5.5 | 0.55- 7.5 | 0.75- 15 | 1.5- 22 |
| Ratio | 10.27- 165.71 | 11.46- 244.74 | 10.78- 196.21 | 11.55- 227.20 | 9.96- 241.09 | 11.83- 223.26 | 12.75- 230.48 |
| Max torque (N.m) | 90 | 170 | 300 | 520 | 1270 | 2280 | 4000 |
| Weight (kg) | 7 | 10 | 14 | 26 | 50 | 100 | 170 |
1. S series helical-worm gear reducer has helical gear and worm gear combined with integrated transmission, which improves its torque and transmission efficiency and reduces energy loss.
2. Through the combination of helical gear and worm gear, a larger speed ratio range can be achieved, which is suitable for low-speed and high-torque working conditions.
3. The concave and convex surface of the machine body has the function of heat dissipation, strong vibration absorption, and low noise.
4. Adopting the same-axis structure design, compact structure, saving installation space.
5. Gears are made of high-strength alloy steel with carburising and quenching treatment, and the worm gear is made of wear-resistant material, which has high wear resistance, long service life and low maintenance cost.
6. S series helical-worm gear reducer can be connected to various types of reducers and configured with various types of motor drive, and can be installed in 90 degree transmission operating position.
7. Flexible and diversified installation methods, providing base mounting, flange mounting, shaft mounting and other installation methods, which can be adapted to the needs of different equipment.
LNB company is a professional supplier of Chinese gear reducers. We always keep high-quality products, expert technical support and perfect service as the center, and aim at providing customers with efficient and stable transmission solutions and winning customer's trust from all over the world. We are able to provide:
With the application of advanced manufacturing technology and high-quality materials, LNB is able to meet all the different demands of customers. Our gear reducers are made of high-strength materials, with high gear precision, smooth running, high transmission efficiency and durability, so that the equipment can provide stable operation under different working conditions, reduce the failure rate and maintenance cost of equipment and devices.
Our products cover several series and models, including K series, R series, S series, F series, etc., to be applied in numerous industrial areas, including metallurgy, mining, chemical industry, logistics and transport, food processing and other industries, and we offer OEM and ODM service to provide customers with customized reducer solutions according to customer needs.
LNB not only provides the best quality products, but also provides better services to assist customers in achieving a satisfactory experience. We can provide customers with selection guidance, installation and commissioning, operating training and other services, and provide quick response after-sales services to ensure your equipment is always in good condition.
LNB has been providing optimal reducers and services at a comparable price. We have a long-term cooperative partnership with manufacturers and are able to provide high-quality reducers at a reasonable price to help customers save on procurement costs and improve the return on investment of equipment.
We have a complete inventory management system to ensure that standard models of reducers are stocked and shipped easily, saving customers' waiting time as well as improving production efficiency.
