0.18~200 KW
200-18000 NM
3.81~281.71
Cast iron
Helical gears
Oil-bath and Splash Lubrication
China
OEM; ODM
| Basic Information | |

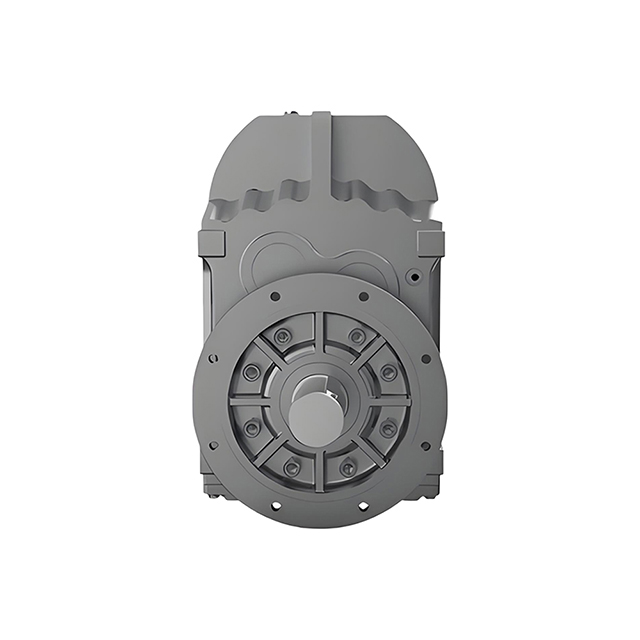

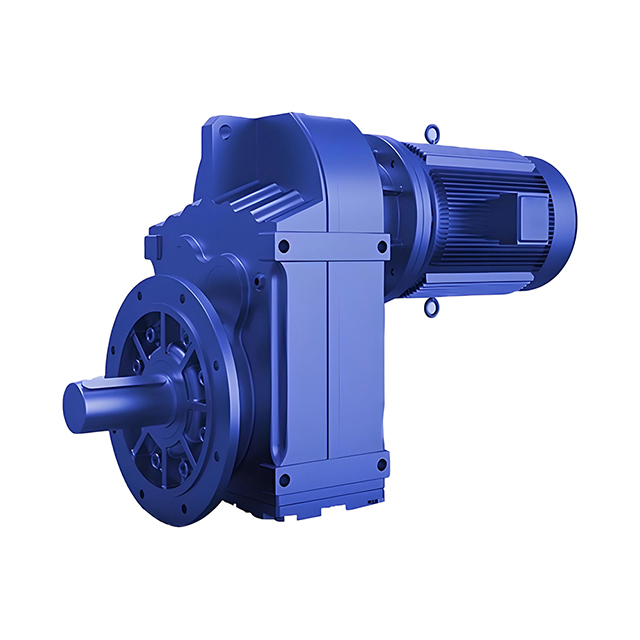

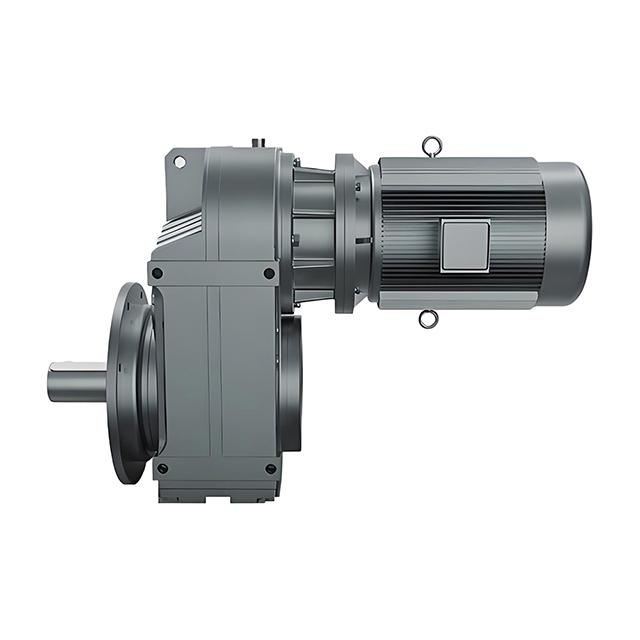

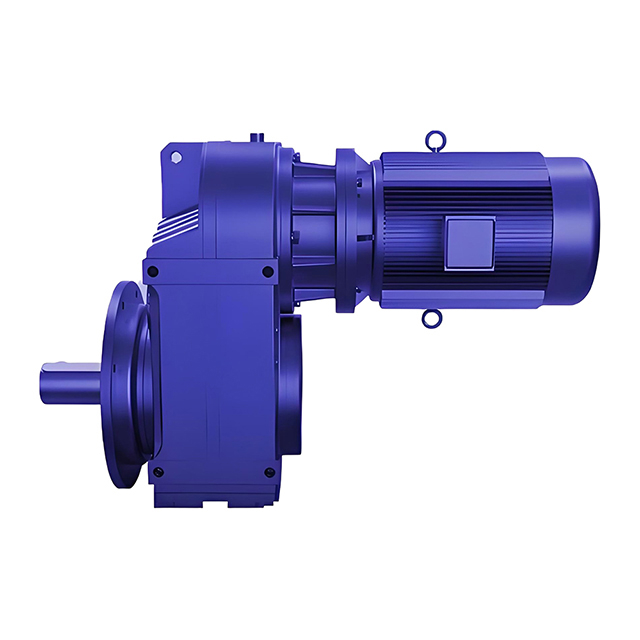

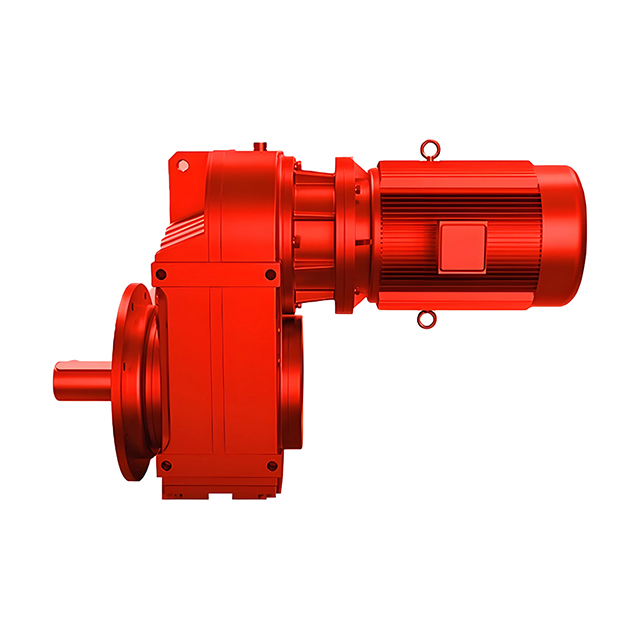

| Product Name | F series parallel shaft helical gear reducer |
| Model | F37; F47; F57; F67; F77; F87; F97; F107; F127 |
| Type | F Series; FF Series; FAF Series; FA Series |

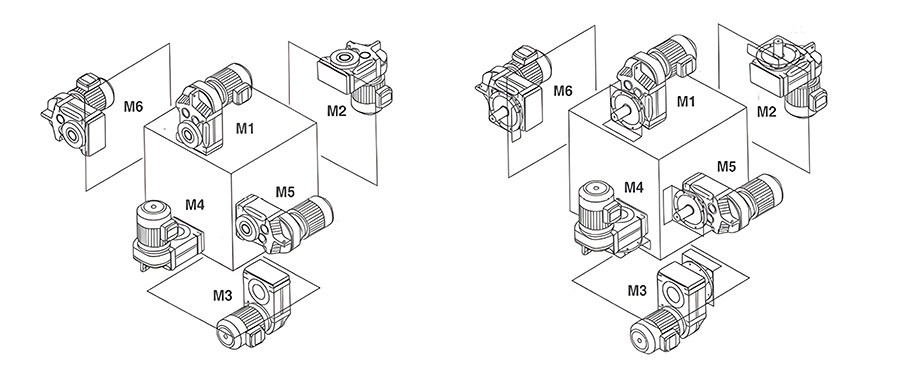

| Installation Method | Foot-mounted; Flange-mounted; Shaft-mounted; Torque arm mounted |
| Input Method | Motor input; Shaft input; AM (IEC) flange input |
| Output Method | Solid shaft output; hollow shaft output |
| Parameters Information | |
| Rated Power | 0.18~200 KW |
| Torque | 200-18000 NM |
| Ratio | 3.81~281.71 |
| Efficiency: | Around 95% |
| Other Information | |
| Housing Material | Cast iron |
| Gears | Helical gears |
| Lubrication | Oil-bath and Splash Lubrication |
| Size | 37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 |
| Structure | F FA FF FAF FAZ | |||||||||
| Input power rate (KW) | 0.18-3.0 | 0.18-3.0 | 0.18-5.5 | 0.18-5.5 | 0.37-11 | 0.75-22 | 1.1- 30 | 2.2- 45 | 7.5- 90 | 11- 200 |
| Ratio | 3.81-128.51 | 5.06-189.39 | 5.18-199.70 | 4.21-228.99 | 4.30-281.71 | 4.12-270.68 | 4.68-280.76 | 6.20-254.40 | 4.63-172.17 | 11.92-267.43 |
| Max torque (N.m) | 200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
| Weight (kg) | 13 | 18 | 34 | 55 | 90 | 150 | 260 | 402 | 700 | 950 |
1. F-Series parallel shaft gear reducers have the output shaft parallel to the input shaft, resulting in a small overall size and low space
2. F-Series parallel shaft helical geared reducers are typically used in conveyor and material processing applications
3. The gears are machined to high precision and mesh smoothly, which effectively reduces energy loss and results in high conventional efficiency and low energy consumption.
4. F series gear reducers come in foot-mounted, flange-mounted, shaft-mounted, and various other mounting types, providing flexible configurations for different equipment requirements.
5. Can be mixed with other various kinds of motors (such as common motors, frequency conversion motors, brake motors, etc.)
LNB company is a professional supplier of Chinese gear reducers. We always keep high-quality products, expert technical support and perfect service as the center, and aim at providing customers with efficient and stable transmission solutions and winning customer's trust from all over the world. We are able to provide:
With the application of advanced manufacturing technology and high-quality materials, LNB is able to meet all the different demands of customers. Our gear reducers are made of high-strength materials, with high gear precision, smooth running, high transmission efficiency and durability, so that the equipment can provide stable operation under different working conditions, reduce the failure rate and maintenance cost of equipment and devices.
Our products cover several series and models, including K series, R series, S series, F series, etc., to be applied in numerous industrial areas, including metallurgy, mining, chemical industry, logistics and transport, food processing and other industries, and we offer OEM and ODM service to provide customers with customized reducer solutions according to customer needs.
LNB not only provides the best quality products, but also provides better services to assist customers in achieving a satisfactory experience. We can provide customers with selection guidance, installation and commissioning, operating training and other services, and provide quick response after-sales services to ensure your equipment is always in good condition.
LNB has been providing optimal reducers and services at a comparable price. We have a long-term cooperative partnership with manufacturers and are able to provide high-quality reducers at a reasonable price to help customers save on procurement costs and improve the return on investment of equipment.
We have a complete inventory management system to ensure that standard models of reducers are stocked and shipped easily, saving customers' waiting time as well as improving production efficiency.
