RB2008
LNB
20 mm
36 mm
8 mm
Steel
Ball Bearing
China
OEM; ODM
Negotiation
30
| Basic Information | ||
| Model | RB2008 | RB2008UU |
| Brand | LNB | LNB |
| System of Measurement | Metric | Metric |
| Roller Bearing Type | Crossed | Crossed |
| Bearing Type | Roller bearing | Roller bearing |
| Seal Type | Open | Double Seal |
| Load Direction | Combined | Combined |
| Temperature Range | 0° to 110 °C | 0° to 110 °C |
| Weight | 0.004 kg | 0.004 kg |
| Product Dimension | ||
| Bore Dia | 20 mm | 20 mm |
| Outer Dia | 36 mm | 36 mm |
| Width | 8 mm | 8 mm |
| Shoulder Height Ds | 23.5 mm | 23.5 mm |
| Shoulder Height Dh | 30.5 mm | 30.5 mm |
| Material | ||
| Ring Material | Chrome Steel | Chrome Steel |
| Roller Material | Chrome Steel | Chrome Steel |
| Basic Load Rating | ||
| Dynamic Radial Load | 3.23 kN | 3.23 kN |
| Static Radial Load | 3.10 kN | 3.10 kN |

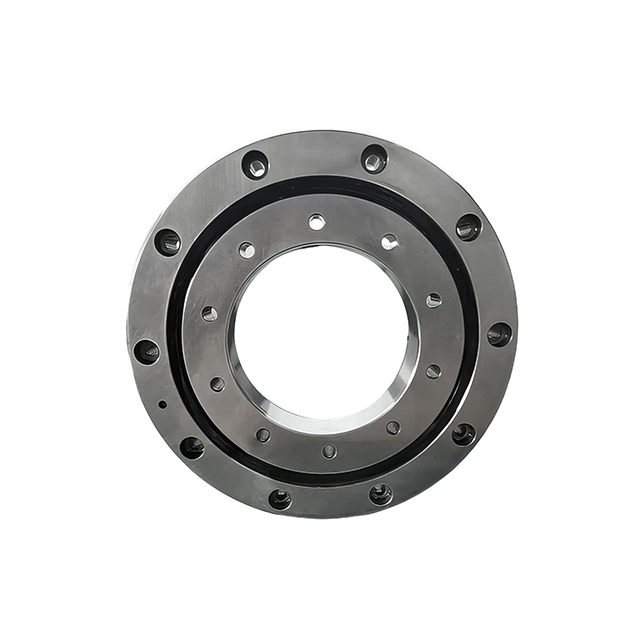

Crossed roller bearings are high-precision bearings. They can withstand multi-directional loads (including radial loads, axial loads, and tilting loads) at the same time due to their unique structure.
In crossed roller bearings, the inner and outer rings are miniaturized, and the thinnest form is close to the ultimate small size, as well as they also have high rigidity, so they are usually applied for the industrial robots' joints and rotating parts, the machining centers' rotary tables, the manipulators' rotating parts, precision rotary tables, measuring instruments, medical machines, IC manufacturing devices, and other equipment. According to different application needs and installation requirements, crossed roller bearings can be divided into multiple types, among which RB type is the standard type of crossed roller bearings.
The following are some specific information on RB-type bearings. If you have any questions, please contact us and our engineers will help you choose the right bearing.
The inner ring of the RB-type crossed roller bearing is an integral structure, and the outer ring is divided into two pieces (separable) and fixed with screws. Each roller is arranged perpendicular to the adjacent rollers, which is suitable for occasions where the inner ring rotation accuracy is required.
The crossed roller structure of the RB-type bearing can withstand loads from multiple directions, including radial loads, axial loads, and tilting loads.
The rollers of the RB-type bearing are arranged crosswise at 90 degrees and are precisely spaced apart by the cage. This structure makes the RB-type crossed roller bearing have high rigidity and can still provide strong load-bearing capacity even in a small installation space.
The RB-type crossed roller bearing has high precision. It achieves preload by adjusting the bearing clearance to ensure high rotation accuracy, which can make the machine equipment run smoothly and efficiently.
RE series cross roller bearings can be divided into two structural types: RE (open) and RE...UU (double seal).
LNB Bearing is a Chinese manufacturer and supplier of a wide range of bearings, which always provide great performance and quality-built bearings, winning lots of trust from worldwide customers. We have decades of experience in manufacturing and selling bearings. We can provide:
Through advanced manufacturing processes and high-quality materials, the LNB bearing is designed to be able to meet all the different requirements of customers. Our bearings are stable under extremely high load, speed, and environmental conditions. The LNB bearing features high wear resistance, corrosion resistance, fatigue resistance, etc., which effectively ensures that it can work well after long-term use to reduce equipment and device failure rates as well as maintenance costs.
A comprehensive range of LNB bearings includes ceramic bearings, deep groove ball bearings, thin section bearings, angular contact bearings, cylindrical roller bearings, tapered roller bearings, miniature bearings, spheric rollers bearings, and so on. Our bearing products are in various forms over multiple materials/types/sizes/models to fit a variety of industries and diverse application fields. For the automotive industry, large-scale mechanical equipment or precision instruments and skateboard wheels.etc., LNB bearing there are suitable products for you.
LNB bearing not only offers the best quality products but is also specific in great service to support satisfied experiences for customers. LNB bearings are available in OEM or ODM, keeping constant investment in R&D and technology improvement to offer the ideal product for our customers. At the same time, LNB bearings have been continuously innovated in materials and other sealing technologies such as dustproof and waterproof design to offer more comprehensive solutions for users.
LNB bearings always follow the concept of eco-friendly and sustainable development. Throughout product designing and manufacturing, LNB bearings emphasize energy saving and pollution reduction to minimize the harm caused by its operations on the environment. Meanwhile, LNB bearings also play a significant role in the innovation of recyclable products and reuse systems to support sustainability.
LNB Bearings Company has always been a leader in the provision of bearings and services to our customers with competitive price levels. We are exporting products around the world now. LNB has full formal channels for many well-known brands of bearings, such as SKF、NSK、FAG 、TIMKEN, etc., so customers can choose suitable bearings in different price brackets to better meet their needs.
