F601x; SF601x
LNB
1.5 mm
6 mm
2.5 mm
Chrome Steel; Stainless Steel
Ball Bearing
Open; Rubber Seals; Steel Shields
China
OEM; ODM
Negotiation
30
| Basic Information | ||
| Model | F601x | SF601x |
| Brand | LNB | LNB |
| System of Measurement | Metric | Metric |
| Material Type | Chrome Steel | Stainless Steel |
| Seal Type | Open; Sealed; Shielded | Open; Sealed; Shielded |
| Load Direction | Radial | Radial |
| Construction | Single Row | Single Row |
| Temperature Range | -30° to 110 °C | -30° to 110 °C |
| Weight | 0.38 g | 0.38 g |
| Product Dimension | ||
| Bore Dia | 1.5 mm | 1.5 mm |
| Bore Dia Tolerance | -0.008mm to 0 | -0.008mm to 0 |
| Outer Dia | 6 mm | 6 mm |
| Outer Dia Tolerance | -0.008mm to 0 | -0.008mm to 0 |
| Width | 2.5 mm | 2.5 mm |
| Width Tolerance | -0.120mm to 0 | -0.120mm to 0 |
| Flange Outer Dia | 7.5 mm | 7.5 mm |
| Flange Thickness | 0.6 mm | 0.6 mm |
| Material | ||
| Ring Material | Chrome Steel | Stainless Steel |
| Ball Material | Chrome Steel | Stainless Steel |
| Cage Material | Steel | Stainless Steel |
| Basic Load Rating | ||
| Dynamic Radial Load | 0.280 kN | 0.253 kN |
| Static Radial Load | 0.080 kN | 0.071 kN |
Flange bearings are widely used in mechanical equipment and automation applications. Through their unique flange design, they achieve easy installation, excellent load-bearing capacity, high positioning accuracy, etc.
In the following, we will briefly introduce some information on the flange bearings.

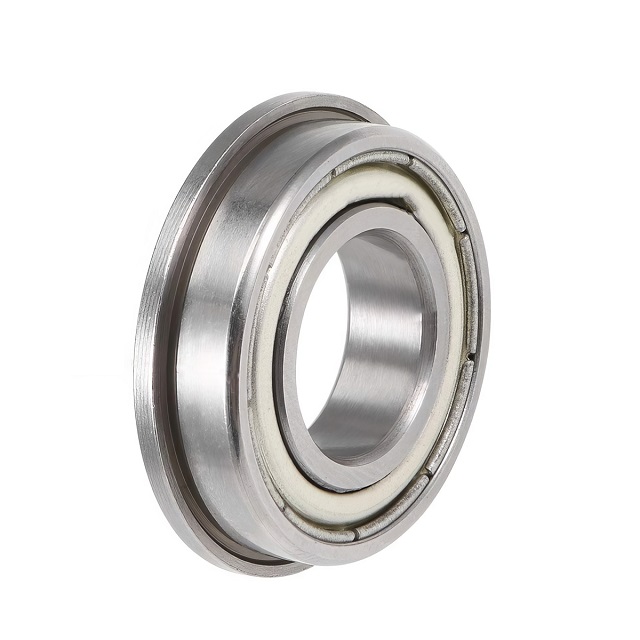

The flange bearing's outer ring has a protruding flange edge, which is usually a fixed flange. This design provides the fixing and positioning of the bearing additional support.
This design is particularly suitable for occasions where the bearing position needs to be fixed. Because they can prevent the bearing from axial displacement the reason for rotation or load.
Due to flange bearings' inherent positioning function, people can simply and efficiently install the bearings on machines. When installing the bearings, the flange design can be helpful to for bearings be more firmly and directly installed on the shaft seat or mounting surface by screws and bolts, reducing the requirements for accuracy and complex fixing devices.
This structure makes flange bearings effectively save assembly time and cost, particularly suitable for installation in complex or narrow spaces.
When mechanical position and motion trajectory need precise control, such as the automation equipment, precision instruments, etc., the flange design plays an important role, it can effectively prevent the bearing from shifting during operation and provide more stable operating performance.
Flange bearings, especially rolling form flange bearings, can withstand large radial and axial loads. So they usually apply in scenes that require heavy load and long-term operation such as industrial equipment and heavy machinery.
Flange bearings are not limited to a certain bearing type, they have a high adapt. Flange bearings can meet different load and speed requirements by combining deep groove ball bearings, roller bearings, needle bearings, and other bearing forms. People can select different specifications, sizes, materials, etc., flange bearings depending on their actual needs.
Flange bearings are often used in high-speed rotation and large vibration environments, such as automobiles, industrial equipment, construction machinery, etc. Under complex working conditions, their unique design can provide better stability and wear resistance.
LNB Bearing is a Chinese manufacturer and supplier of a wide range of bearings, which always provide great performance and quality-built bearings, winning lots of trust from worldwide customers. We have decades of experience in manufacturing and selling bearings. We can provide:
Through advanced manufacturing processes and high-quality materials, the LNB bearing is designed to be able to meet all the different requirements of customers. Our bearings are stable under extremely high load, speed, and environmental conditions. The LNB bearing features high wear resistance, corrosion resistance, fatigue resistance, etc., which effectively ensures that it can work well after long-term use to reduce equipment and device failure rates as well as maintenance costs.
A comprehensive range of LNB bearings includes ceramic bearings, deep groove ball bearings, thin section bearings, angular contact bearings, cylindrical roller bearings, tapered roller bearings, miniature bearings, spheric rollers bearings, and so on. Our bearing products are in various forms over multiple materials/types/sizes/models to fit a variety of industries and diverse application fields. For the automotive industry, large-scale mechanical equipment or precision instruments and skateboard wheels.etc., LNB bearing there are suitable products for you.
LNB bearing not only offers the best quality products but is also specific in great service to support satisfied experiences for customers. LNB bearings are available in OEM or ODM, keeping constant investment in R&D and technology improvement to offer the ideal product for our customers. At the same time, LNB bearings have been continuously innovated in materials and other sealing technologies such as dustproof and waterproof design to offer more comprehensive solutions for users.
LNB bearings always follow the concept of eco-friendly and sustainable development. Throughout product designing and manufacturing, LNB bearings emphasize energy saving and pollution reduction to minimize the harm caused by its operations on the environment. Meanwhile, LNB bearings also play a significant role in the innovation of recyclable products and reuse systems to support sustainability.
LNB Bearings Company has always been a leader in the provision of bearings and services to our customers with competitive price levels. We are exporting products around the world now. LNB has full formal channels for many well-known brands of bearings, such as SKF、NSK、FAG 、TIMKEN, etc., so customers can choose suitable bearings in different price brackets to better meet their needs.
